Product details

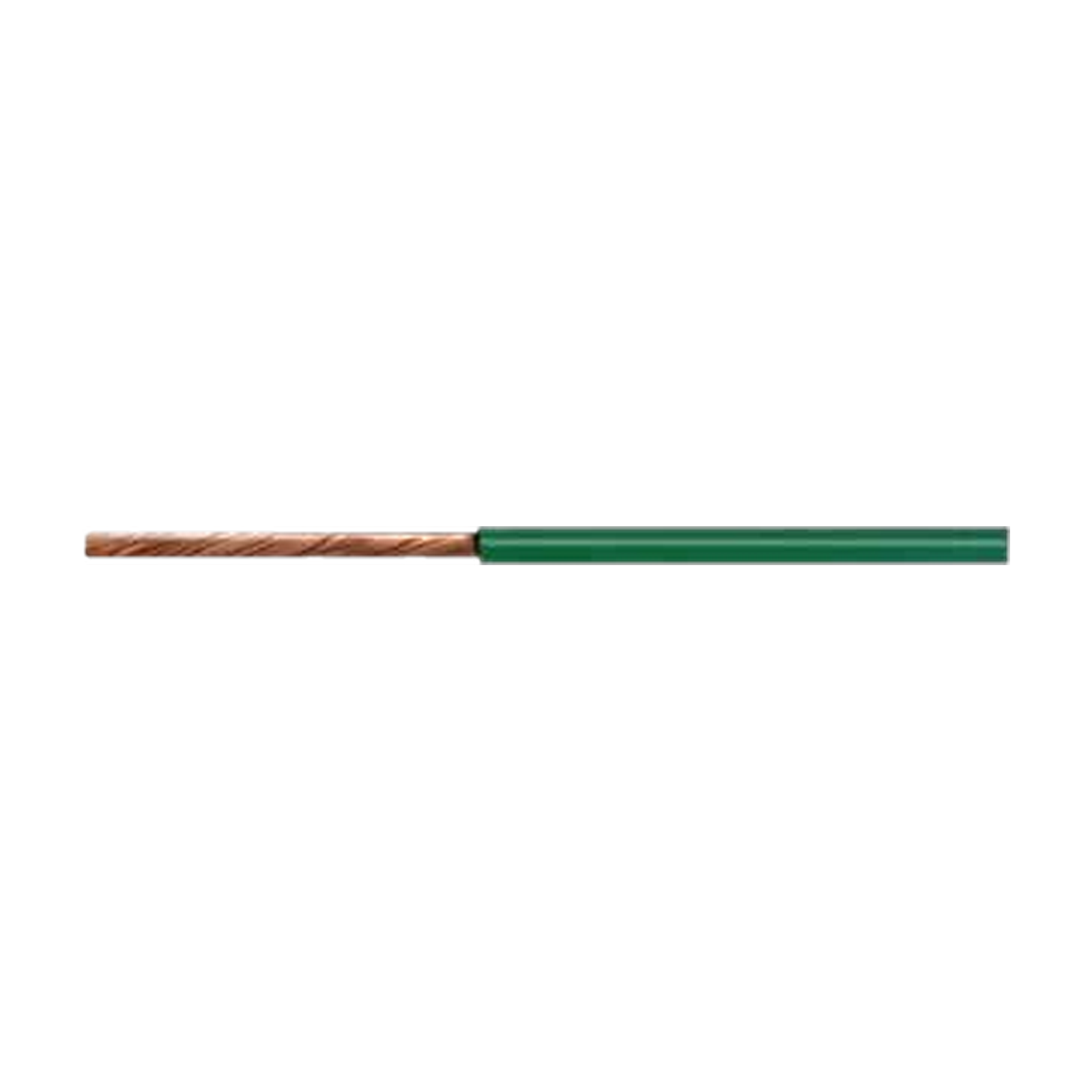

Australian-made Tycab plain-copper single-core automotive cable with V90 PVC insulation, supplied on a 100m roll. Select the cable size and colour.
- MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
- Also known as: auto cable, single-core automotive wire, V90 cable, automotive primary wire.
Technical specifications
Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.
| Base MPN / SKU | Cores | Nominal area per core (mm²) | Amp rating at 30°C | Resistance at 20°C (Ω/km) | Nominal OD (mm) |
|---|---|---|---|---|---|
| ASC11603 | 1 | 1.13 | 20 A | 16.5 | 2.2 |
| ASC12603 | 1 | 1.84 | 28 A | 10.1 | 2.6 |
| ASC14103 | 1 | 2.90 | 37 A | 6.4 | 3.0 |
| ASC16503 | 1 | 4.59 | 48 A | 4.1 | 4.0 |
Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.
Technical datasheets
Quick order by variant
Add individual variants by manufacturer SKU.
| Variant | SKU | Price | Quantity | |
|---|---|---|---|---|
| 3mm industry size (1.13mm² / 20A) / Black | ASC11603BK-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Blue | ASC11603LB-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Brown | ASC11603NN-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Green | ASC11603GN-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Grey | ASC11603SY-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Light Blue | ASC11603BL-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Light Green | ASC11603GL-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Orange | ASC11603OR-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Pink | ASC11603PK-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Red | ASC11603RD-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Tan | ASC11603TN-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Violet | ASC11603VL-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / White | ASC11603WH-100 |
$75.68 | ||
| 3mm industry size (1.13mm² / 20A) / Yellow | ASC11603YW-100 |
$75.68 | ||
| 4mm industry size (1.84mm² / 28A) / Black | ASC12603BK-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Blue | ASC12603LB-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Brown | ASC12603NN-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Green | ASC12603GN-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Grey | ASC12603SY-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Light Blue | ASC12603BL-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Light Green | ASC12603GL-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Orange | ASC12603OR-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Pink | ASC12603PK-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Red | ASC12603RD-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Violet | ASC12603VL-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / White | ASC12603WH-100 |
$121.27 | ||
| 4mm industry size (1.84mm² / 28A) / Yellow | ASC12603YW-100 |
$121.27 | ||
| 5mm industry size (2.90mm² / 37A) / Black | ASC14103BK-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Blue | ASC14103LB-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Brown | ASC14103NN-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Green | ASC14103GN-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Grey | ASC14103SY-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Light Green | ASC14103GL-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Orange | ASC14103OR-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Pink | ASC14103PK-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Red | ASC14103RD-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Tan | ASC14103TN-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Violet | ASC14103VL-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / White | ASC14103WH-100 |
$184.71 | ||
| 5mm industry size (2.90mm² / 37A) / Yellow | ASC14103YW-100 |
$184.71 | ||
| 6mm industry size (4.59mm² / 48A) / Black | ASC16503BK-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Blue | ASC16503LB-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Brown | ASC16503NN-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Green | ASC16503GN-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Grey | ASC16503SY-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Orange | ASC16503OR-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Pink | ASC16503PK-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Red | ASC16503RD-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Tan | ASC16503TN-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Violet | ASC16503VL-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / White | ASC16503WH-100 |
$292.32 | ||
| 6mm industry size (4.59mm² / 48A) / Yellow | ASC16503YW-100 |
$292.32 |
