Product details

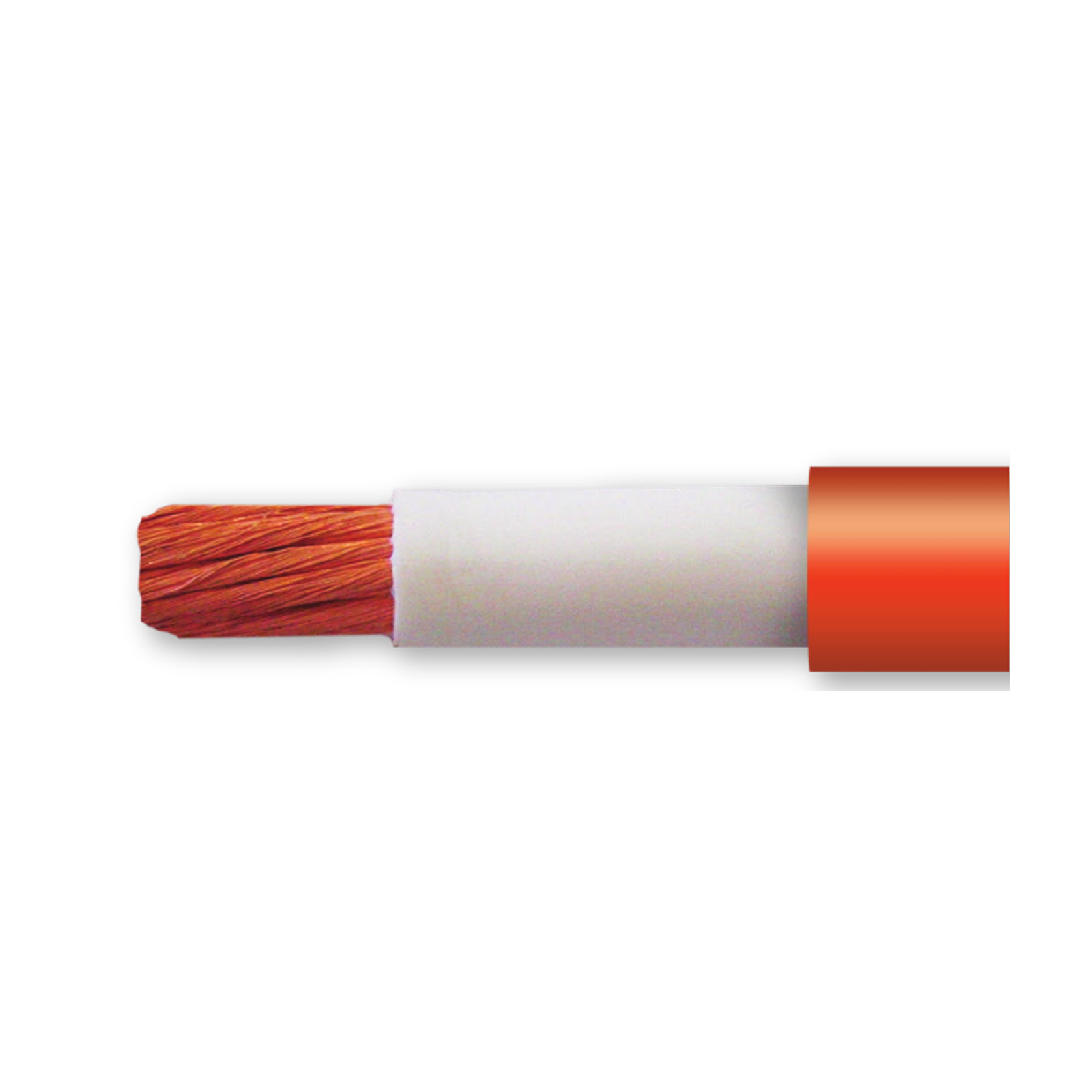

Australian-made Tycab highly flexible double-insulated 0.6/1kV power and welding cable with V90HT insulation. Sold by the metre.

  • MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
  • Also known as: weldflex cable, welding lead cable, double-insulated power cable, flexible battery cable.

Technical specifications

Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.

Base MPN / SKU Cores Nominal area per core (mm²) Amp rating at 30°C Resistance at 20°C (Ω/km) Nominal OD (mm)
ZDU179202 1 25 125 A 0.78 11.8
ZDU1112102 1 35 155 A 0.554 13.1
ZDU1159602 1 50 185 A 0.386 14.9
ZDU1221202 1 70 240 A 0.272 17.0
ZDU1302102 1 95 295 A 0.206 19.3

Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.

Technical datasheets

Quick order by variant

Add individual variants by manufacturer SKU.

17 variants
VariantSKUPriceQuantity
25mm² / Black ZDU179202BK $15.90
25mm² / Blue ZDU179202LB $15.90
25mm² / Orange ZDU179202OR $15.90
25mm² / Red ZDU179202RD $15.90
35mm² / Black ZDU1112102BK $27.72
35mm² / Blue ZDU1112102LB $27.72
35mm² / Orange ZDU1112102OR $27.72
35mm² / Red ZDU1112102RD $27.72
50mm² / Black ZDU1159602BK $39.60
50mm² / Orange ZDU1159602OR $39.60
50mm² / Red ZDU1159602RD $39.60
70mm² / Black ZDU1221202BK $43.89
70mm² / Orange ZDU1221202OR $43.89
70mm² / Red ZDU1221202RD $43.89
95mm² / Black ZDU1302102BK $69.30
95mm² / Orange ZDU1302102OR $69.30
95mm² / Red ZDU1302102RD $69.30
