Product details

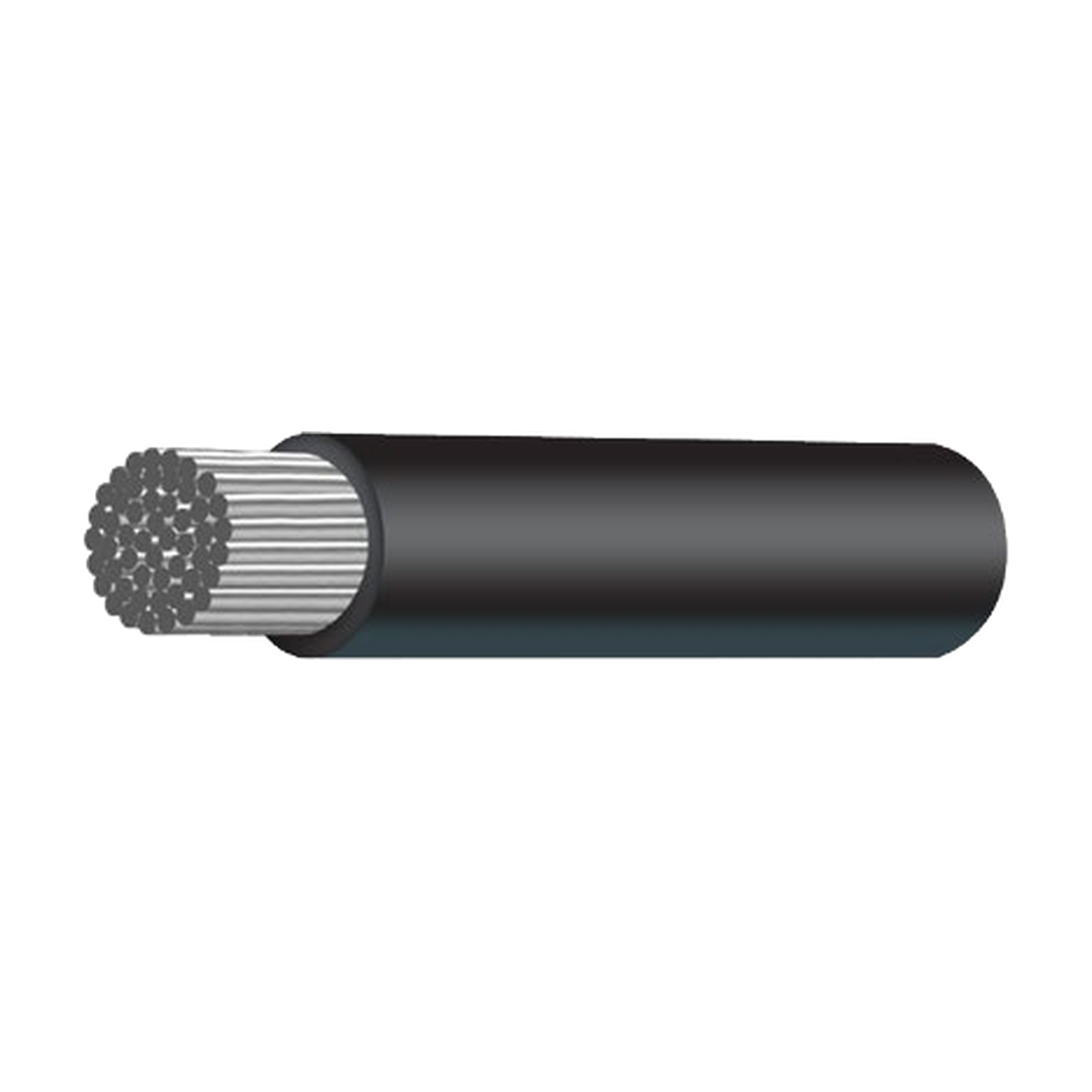

Australian-made Tycab single-core marine battery and starter cable with flexible tinned-copper conductor for corrosion resistance in marine and exposed installations.
- MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
- Also known as: tinned battery cable, marine starter cable, B&S cable, marine power cable.
Technical specifications
Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.
| Base MPN / SKU | Cores | Nominal area per core (mm²) | Amp rating at 30°C | Resistance at 20°C (Ω/km) | Nominal OD (mm) |
|---|---|---|---|---|---|
| MBS111203 | 1 | 8 | 74 A | 2.50 | 5.75 |
| MBS119203 | 1 | 13.5 | 103 A | 1.42 | 7.2 |
| MBS136403 | 1 | 25 | 168 A | 0.79 | 10.2 |
| MBS145503 | 1 | 32 | 188 A | 0.62 | 10.3 |
Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.
Technical datasheets
Quick order by variant
Add individual variants by manufacturer SKU.
| Variant | SKU | Price | Quantity | |
|---|---|---|---|---|
| 2 B&S (32.15mm²) / Black / 30m | MBS145503BK-30 |
$620.68 | ||
| 2 B&S (32.15mm²) / Red / 30m | MBS145503RD-30 |
$620.68 | ||
| 3 B&S (25.7mm²) / Black / 100m | MBS136403BK-100 |
$1,748.14 | ||
| 3 B&S (25.7mm²) / Red / 100m | MBS136403RD-100 |
$1,748.14 | ||
| 6 B&S (13.5mm²) / Black / 100m | MBS119203BK-100 |
$990.00 | ||
| 6 B&S (13.5mm²) / Red / 100m | MBS119203RD-100 |
$990.00 | ||
| 8 B&S (7.71mm²) / Black / 100m | MBS111203BK-100 |
$594.00 | ||
| 8 B&S (7.71mm²) / Red / 100m | MBS111203RD-100 |
$594.00 |
