Product details

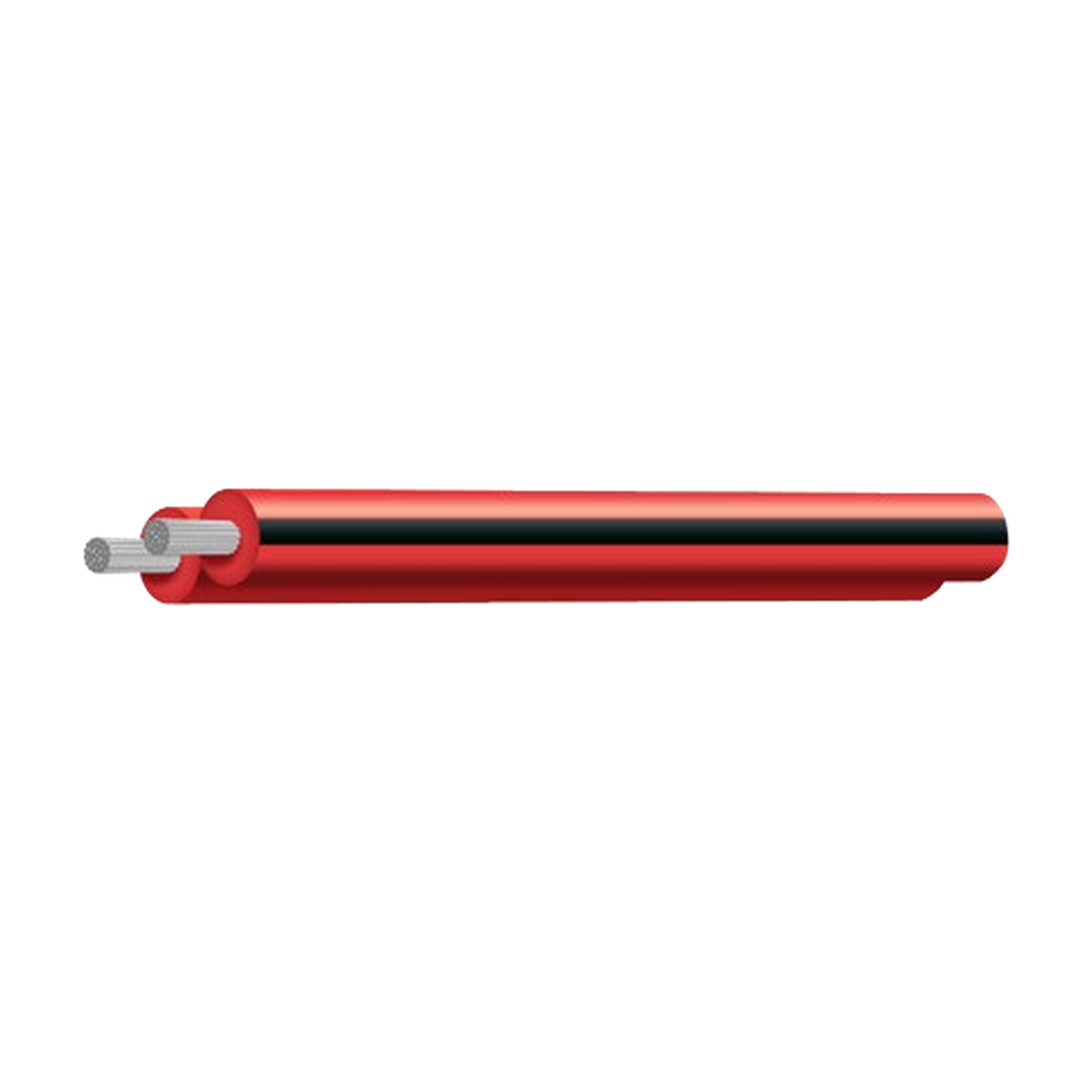

Australian-made Tycab red/black figure-8 marine twin cable with tinned-copper conductors, supplied on a 100m roll.
- MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
- Also known as: marine figure-8 cable, tinned twin cable, red black twin cable, marine duplex cable.
Technical specifications
Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.
| Base MPN / SKU | Cores | Nominal area per core (mm²) | Amp rating at 30°C | Resistance at 20°C (Ω/km) | Nominal OD (mm) |
|---|---|---|---|---|---|
| MFS21603 | 2 | 1.13 | 16 A | 16.5 | 2.6 × 5.9 |
| MFS22603 | 2 | 1.84 | 22 A | 10.1 | 3.1 × 6.7 |
Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.
Technical datasheets
Quick order by variant
Add individual variants by manufacturer SKU.
| Variant | SKU | Price | Quantity | |
|---|---|---|---|---|
| 3mm industry size (1.13mm² per core) | MFS21603RDBK-100 |
$215.10 | ||
| 4mm industry size (1.84mm² per core) | MFS22603RDBK-100 |
$267.62 |
