Product details

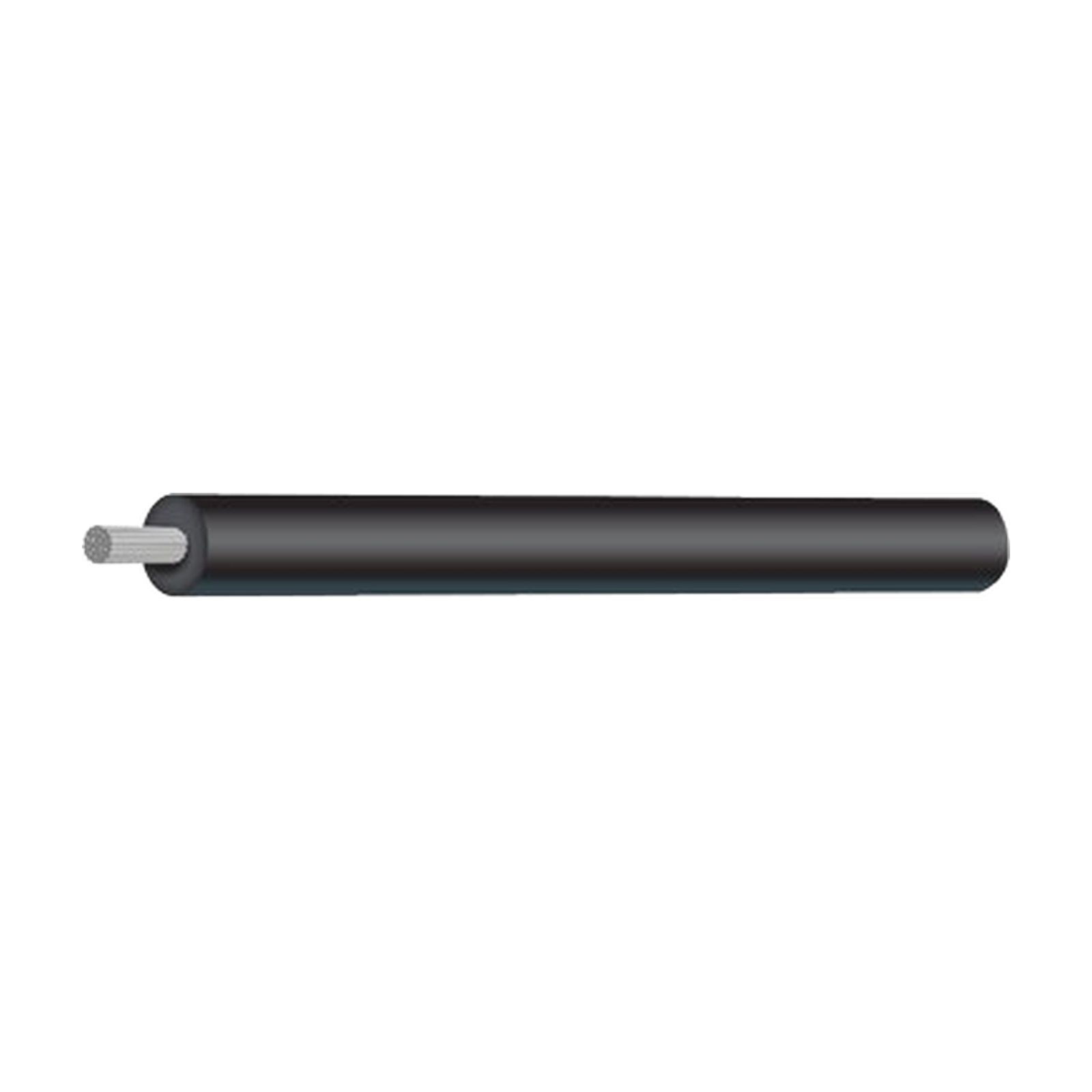

Australian-made Tycab single-core marine cable with tinned-copper conductor and durable insulation, supplied on a 100m roll.
- MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
- Also known as: tinned marine wire, marine primary wire, single-core marine cable, boat cable.
Technical specifications
Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.
| Base MPN / SKU | Cores | Nominal area per core (mm²) | Amp rating at 30°C | Resistance at 20°C (Ω/km) | Nominal OD (mm) |
|---|---|---|---|---|---|
| MSS11603 | 1 | 1.13 | 20 A | 16.7 | 2.2 |
| MSS12603 | 1 | 1.84 | 28 A | 10.2 | 2.6 |
| MSS16503 | 1 | 4.59 | 48 A | 4.15 | 4.0 |
Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.
Technical datasheets
Quick order by variant
Add individual variants by manufacturer SKU.
| Variant | SKU | Price | Quantity | |
|---|---|---|---|---|
| 3mm industry size (1.13mm² / 20A) / Black | MSS11603BK-100 |
$79.63 | ||
| 3mm industry size (1.13mm² / 20A) / Red | MSS11603RD-100 |
$79.63 | ||
| 4mm industry size (1.84mm² / 28A) / Black | MSS12603BK-100 |
$122.99 | ||
| 4mm industry size (1.84mm² / 28A) / Red | MSS12603RD-100 |
$122.99 | ||
| 6mm industry size (4.59mm² / 48A) / Black | MSS16503BK-100 |
$293.74 | ||
| 6mm industry size (4.59mm² / 48A) / Red | MSS16503RD-100 |
$293.74 |
