Product details

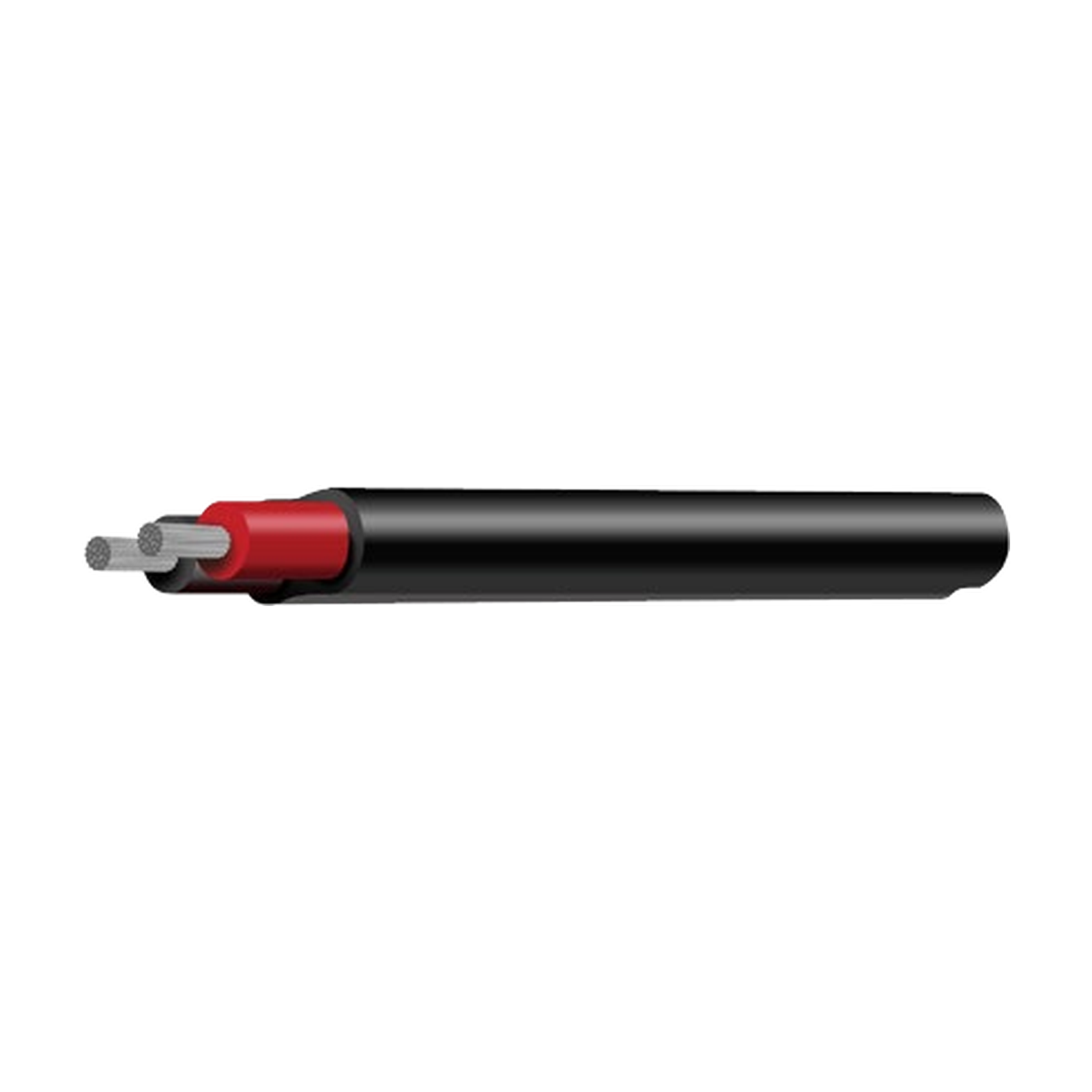

Heavy-duty Australian-made Tycab black twin-sheath marine battery cable with two flexible tinned-copper conductors.
- MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
- Also known as: marine duplex battery cable, tinned twin-sheath cable, B&S twin cable, boat battery cable.
Technical specifications
Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.
| Base MPN / SKU | Cores | Nominal area per core (mm²) | Amp rating at 30°C | Resistance at 20°C (Ω/km) | Nominal OD (mm) |
|---|---|---|---|---|---|
| MWS296032 | 2 | 7.7 | 59 A | 2.43 | 7.1 × 12.5 |
| MWS2168032 | 2 | 13.5 | 82 A | 1.42 | 8.8 × 16.0 |
| MWS2399032 | 2 | 32.0 | 150 A | 0.61 | 13.0 × 24.0 |
Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.
Technical datasheets
Quick order by variant
Add individual variants by manufacturer SKU.
| Variant | SKU | Price | Quantity | |
|---|---|---|---|---|
| 2 B&S (32.07mm² per core) / 30m | MWS2399032BK-30 |
$1,514.70 | ||
| 6 B&S (13.5mm² per core) / 100m | MWS2168032BK-100 |
$2,178.00 | ||
| 8 B&S (7.71mm² per core) / 30m | MWS296032BK-30 |
$400.95 |
