Product details

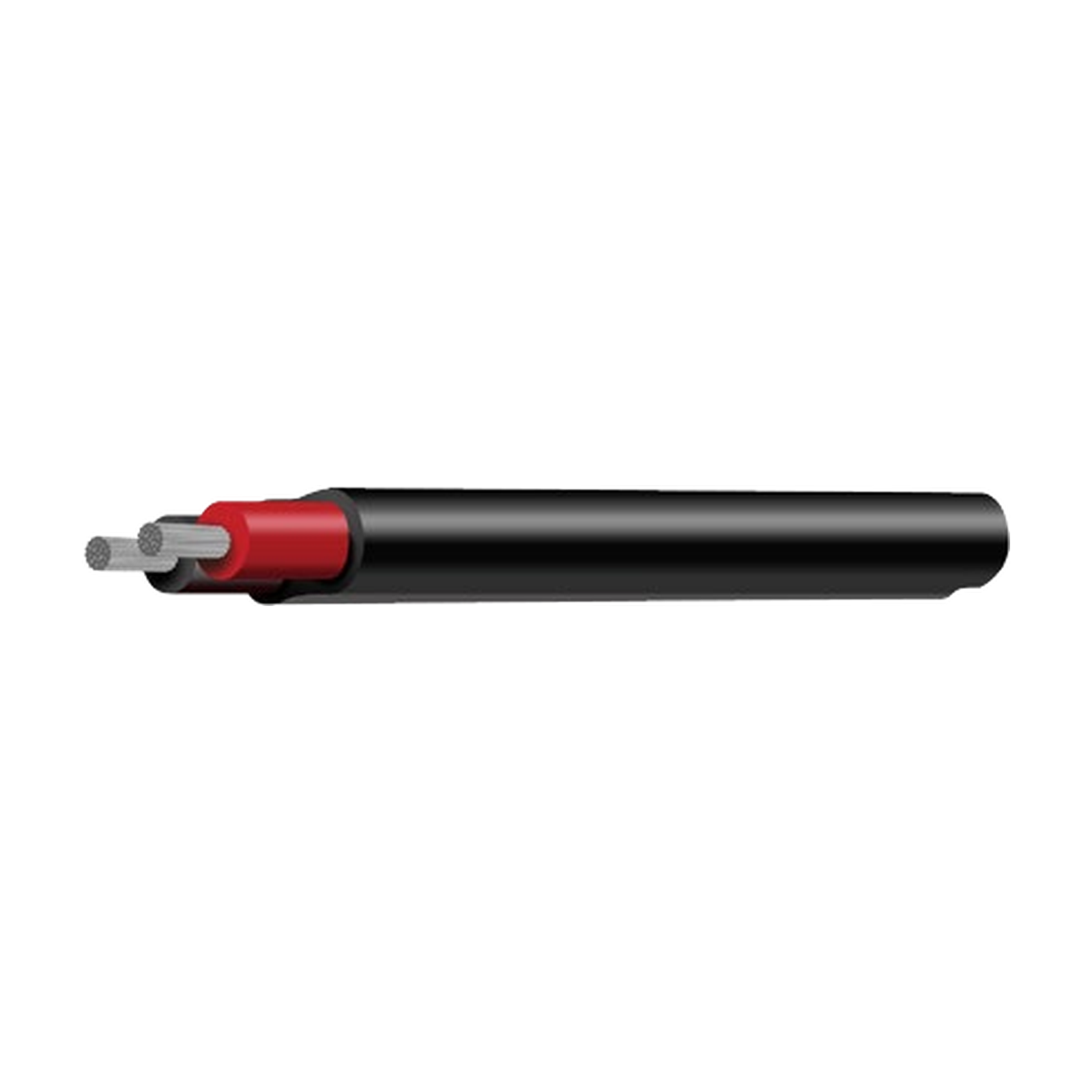

Australian-made Tycab twin-sheath marine cable with red/black tinned-copper conductors and a black outer sheath, supplied on a 100m roll.
- MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
- Also known as: marine duplex cable, tinned twin cable, red black marine cable, boat cable.
Technical specifications
Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.
| Base MPN / SKU | Cores | Nominal area per core (mm²) | Amp rating at 30°C | Resistance at 20°C (Ω/km) | Nominal OD (mm) |
|---|---|---|---|---|---|
| MWS21602 | 2 | 0.5 | 7 A | 39.0 | 3.2 × 5.2 |
| MWS21603 | 2 | 1.13 | 16 A | 16.5 | 3.7 × 5.8 |
| MWS22603 | 2 | 1.84 | 22 A | 10.1 | 4.1 × 6.6 |
| MWS26503 | 2 | 4.5 | 38 A | 4.1 | 5.9 × 9.9 |
Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.
Technical datasheets
Quick order by variant
Add individual variants by manufacturer SKU.
| Variant | SKU | Price | Quantity | |
|---|---|---|---|---|
| 2mm industry size (0.5mm² per core) | MWS21602BK-100 |
$98.59 | ||
| 3mm industry size (1.13mm² per core) | MWS21603BK-100 |
$215.10 | ||
| 4mm industry size (1.84mm² per core) | MWS22603BK-100 |
$276.35 | ||
| 6mm industry size (4.59mm² per core) | MWS26503BK-100 |
$861.30 |
