Tycab

Tycab Multi-Core Trailer Cable – V90 PVC – 100m Roll

Tycab Multi-Core Trailer Cable – V90 PVC – 100m Roll

ATC31603BK-100

Out of stock

$243.81
$243.81
Sale Sold out
Cable Size

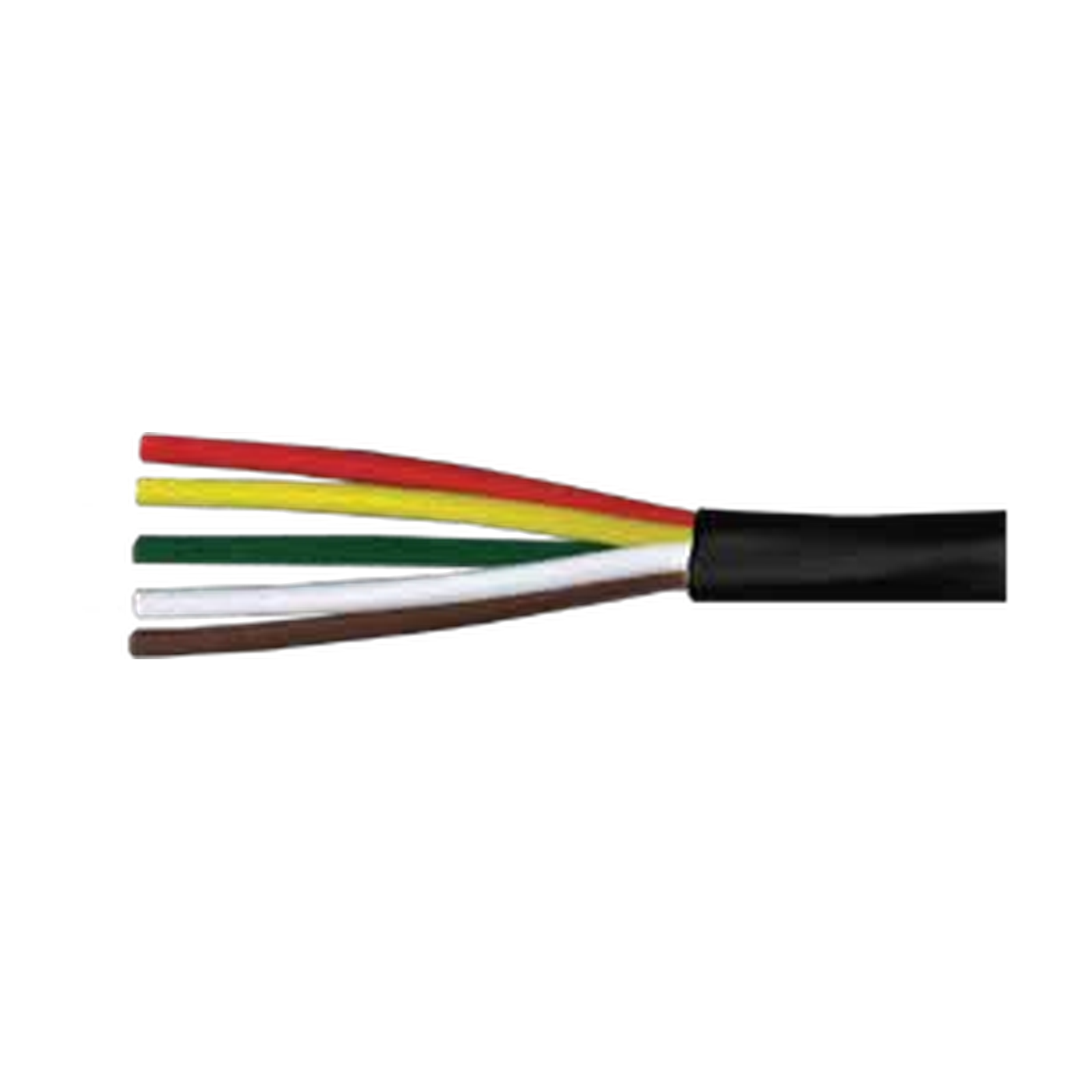

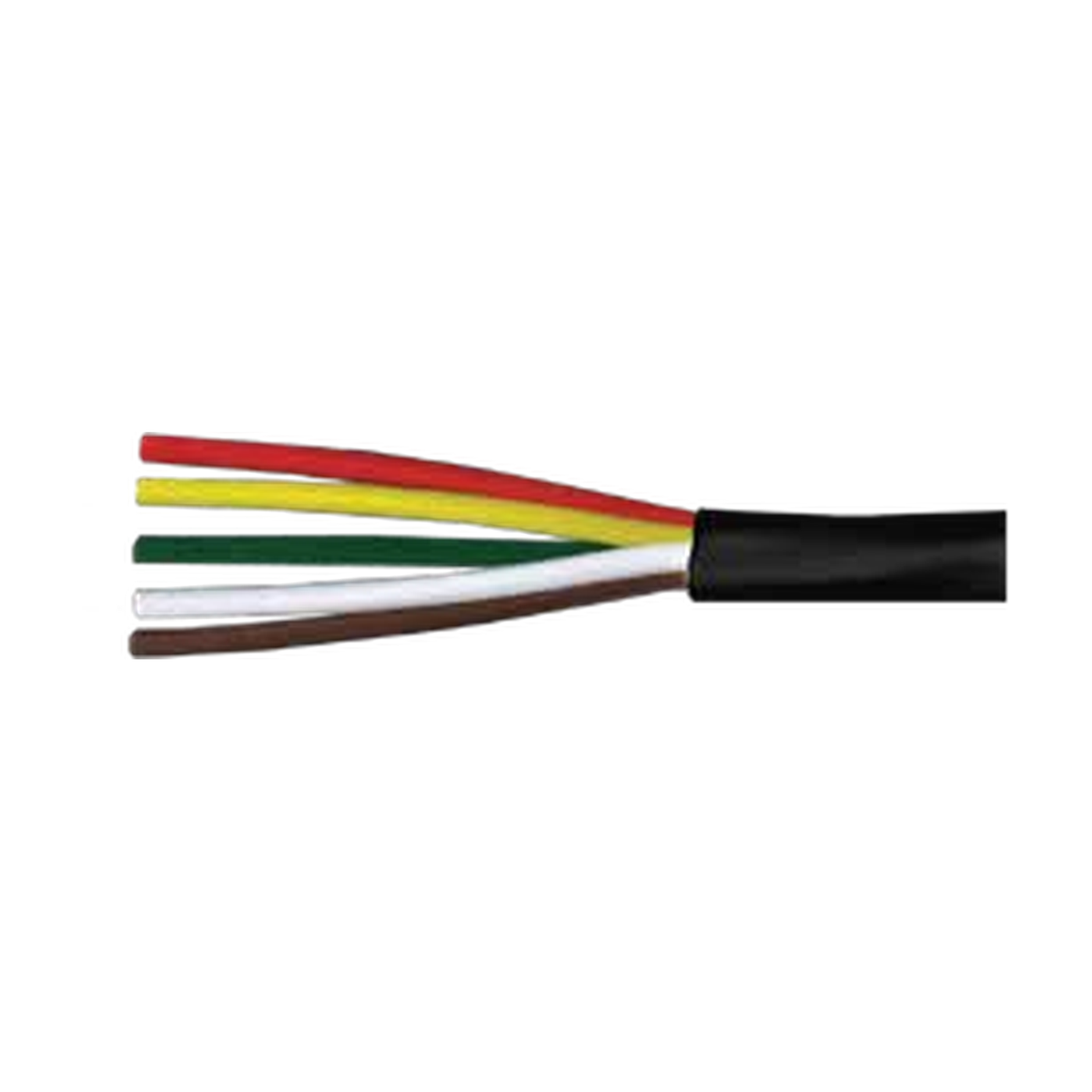

Australian-made Tycab multicore trailer and automotive cable with colour-coded conductors and black V90 PVC outer sheath, supplied on a 100m roll.

  • MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
  • Also known as: trailer wire, multicore automotive cable, 7-core trailer cable, 5-core trailer cable.

Technical specifications

Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.

Base MPN / SKU Cores Nominal area per core (mm²) Amp rating at 30°C Resistance at 20°C (Ω/km) Nominal OD (mm)
ATC31603 3 1.13 14 A 16.8 5.7
ATC47032 4 0.56 7 A 33.1 5.6
ATC5903 5 0.64 8 A 29.9 6.7
ATC51603 5 1.13 11 A 16.8 7.1
ATC52603 5 1.84 15 A 10.3 8.2
ATC7903 7 0.64 6 A 29.9 7.3
ATC77032 7 0.56 5 A 33.1 6.7
ATC71603 7 1.13 10 A 16.8 7.7
ATC72603 7 1.84 14 A 10.3 8.9

Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.

Technical datasheets

View full details
Variant Variant total Quantity Price Variant total
3 Core × 3mmATC31603BK-100
3 Core × 3mmATC31603BK-100
$243.81/ea		 $0.00
Sold out
$243.81/ea $0.00
4 Core × 2mmATC47032BK-100
4 Core × 2mmATC47032BK-100
$179.03/ea		 $0.00
Sold out
$179.03/ea $0.00
5 Core × 2.5mmATC5903BK-100
5 Core × 2.5mmATC5903BK-100
$245.30/ea		 $0.00
Sold out
$245.30/ea $0.00
5 Core × 3mmATC51603BK-100
5 Core × 3mmATC51603BK-100
$385.98/ea		 $0.00
Sold out
$385.98/ea $0.00
5 Core × 4mmATC52603BK-100
5 Core × 4mmATC52603BK-100
$619.33/ea		 $0.00
Sold out
$619.33/ea $0.00
7 Core × 2.5mmATC7903BK-100
7 Core × 2.5mmATC7903BK-100
$335.00/ea		 $0.00
Sold out
$335.00/ea $0.00
7 Core × 2mmATC77032BK-100
7 Core × 2mmATC77032BK-100
$290.68/ea		 $0.00
Sold out
$290.68/ea $0.00
7 Core × 3mmATC71603BK-100
7 Core × 3mmATC71603BK-100
$523.89/ea		 $0.00
Sold out
$523.89/ea $0.00
7 Core × 4mmATC72603BK-100
7 Core × 4mmATC72603BK-100
$851.27/ea		 $0.00
Sold out
$851.27/ea $0.00
