Product details

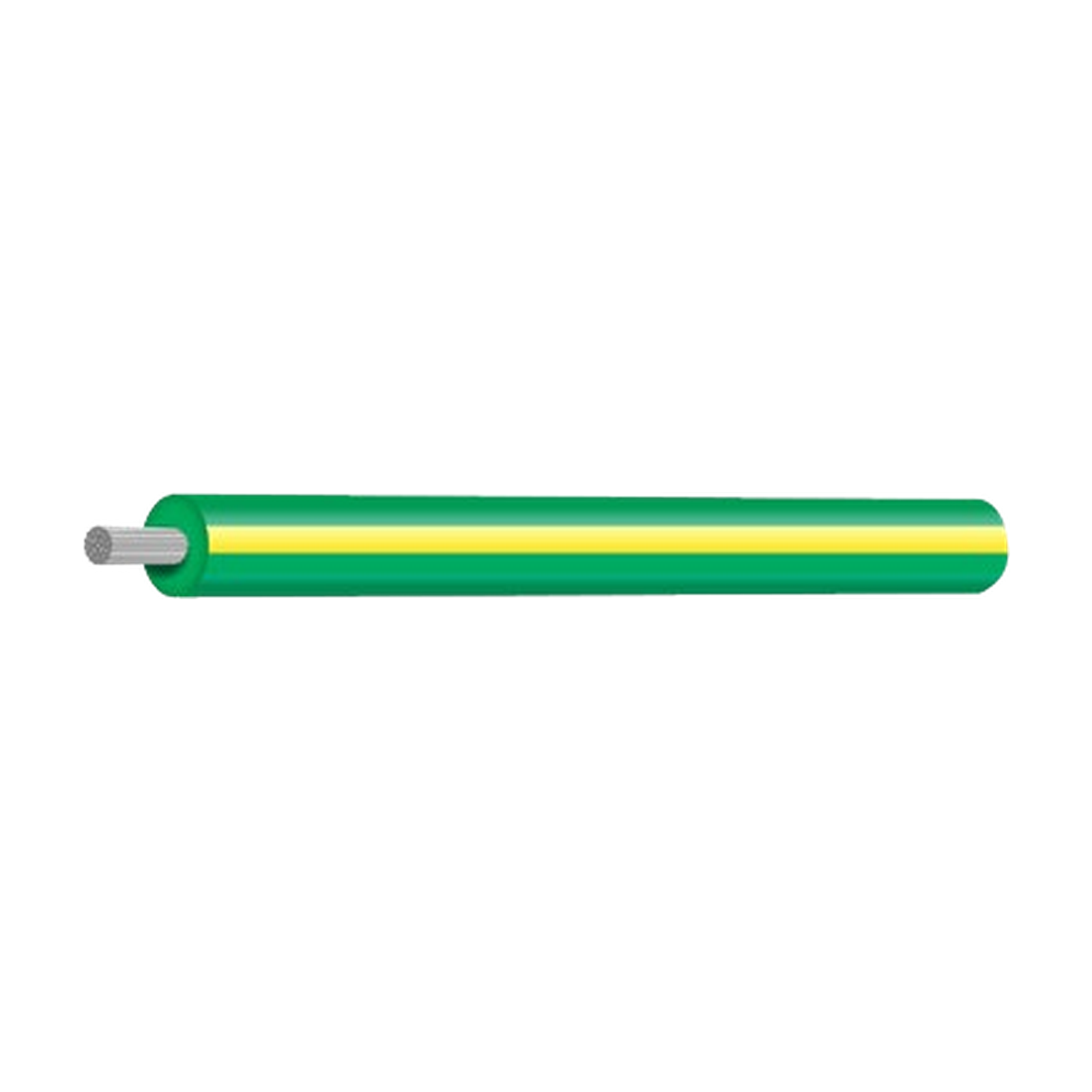

Australian-made Tycab flexible single-core appliance wire with tinned-copper conductor and V90HT insulation, rated 0.6/1kV and supplied on a 100m roll.

  • MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
  • Also known as: tinned appliance wire, V90HT flexible cable, switchboard wire, 0.6/1kV single-core cable.

Technical specifications

Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.

Base MPN / SKU Cores Nominal area per core (mm²) Amp rating at 30°C Resistance at 20°C (Ω/km) Nominal OD (mm)
FVK11602 1 0.5 3 A 40.1 2.6
FVK12402 1 0.75 7.5 A 25.7 2.8
FVK13202 1 1.0 10 A 20.0 3.0
FVK130025 1 1.5 15 A 13.7 3.15
FVK150025 1 2.5 20 A 8.2 3.8
FVK15603 1 4.0 25 A 5.1 4.75
FVK18403 1 6.0 30 A 3.4 5.3

Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.

Technical datasheets

Quick order by variant

Add individual variants by manufacturer SKU.

75 variants
VariantSKUPriceQuantity
0.5mm² / Black FVK11602BK-100 $44.03
0.5mm² / Blue FVK11602LB-100 $44.03
0.5mm² / Brown FVK11602NN-100 $44.03
0.5mm² / Green/Yellow FVK11602GNYW-100 $44.03
0.5mm² / Green FVK11602GN-100 $44.03
0.5mm² / Grey FVK11602SY-100 $44.03
0.5mm² / Orange FVK11602OR-100 $44.03
0.5mm² / Pink FVK11602PK-100 $44.03
0.5mm² / Red FVK11602RD-100 $44.03
0.5mm² / Violet FVK11602VL-100 $44.03
0.5mm² / White FVK11602WH-100 $44.03
0.5mm² / Yellow FVK11602YW-100 $44.03
0.75mm² / Black FVK12402BK-100 $60.60
0.75mm² / Blue FVK12402LB-100 $60.60
0.75mm² / Brown FVK12402NN-100 $60.60
0.75mm² / Green/Yellow FVK12402GNYW-100 $60.60
0.75mm² / Green FVK12402GN-100 $60.60
0.75mm² / Grey FVK12402SY-100 $60.60
0.75mm² / Orange FVK12402OR-100 $60.60
0.75mm² / Pink FVK12402PK-100 $60.60
0.75mm² / Red FVK12402RD-100 $60.60
0.75mm² / Violet FVK12402VL-100 $60.60
0.75mm² / White FVK12402WH-100 $60.60
1.5mm² / Black FVK130025BK-100 $105.15
1.5mm² / Blue FVK130025LB-100 $105.15
1.5mm² / Brown FVK130025NN-100 $105.15
1.5mm² / Green/Yellow FVK130025GNYW-100 $105.15
1.5mm² / Green FVK130025GN-100 $105.15
1.5mm² / Grey FVK130025SY-100 $105.15
1.5mm² / Light Blue FVK130025BL-100 $105.15
1.5mm² / Orange FVK130025OR-100 $105.15
1.5mm² / Pink FVK130025PK-100 $105.15
1.5mm² / Red FVK130025RD-100 $105.15
1.5mm² / Violet FVK130025VL-100 $105.15
1.5mm² / White FVK130025WH-100 $105.15
1.5mm² / Yellow FVK130025YW-100 $105.15
1mm² / Black FVK13202BK-100 $81.00
1mm² / Blue FVK13202LB-100 $81.00
1mm² / Brown FVK13202NN-100 $81.00
1mm² / Green/Yellow FVK13202GNYW-100 $81.00
1mm² / Green FVK13202GN-100 $81.00
1mm² / Grey FVK13202SY-100 $81.00
1mm² / Orange FVK13202OR-100 $81.00
1mm² / Pink FVK13202PK-100 $81.00
1mm² / Red FVK13202RD-100 $81.00
1mm² / Violet FVK13202VL-100 $81.00
1mm² / White FVK13202WH-100 $81.00
2.5mm² / Black FVK150025BK-100 $167.02
2.5mm² / Blue FVK150025LB-100 $167.02
2.5mm² / Brown FVK150025NN-100 $167.02
2.5mm² / Green/Yellow FVK150025GNYW-100 $167.02
2.5mm² / Green FVK150025GN-100 $167.02
2.5mm² / Grey FVK150025SY-100 $167.02
2.5mm² / Orange FVK150025OR-100 $167.02
2.5mm² / Pink FVK150025PK-100 $167.02
2.5mm² / Red FVK150025RD-100 $167.02
2.5mm² / Violet FVK150025VL-100 $167.02
2.5mm² / White FVK150025WH-100 $167.02
4mm² / Black FVK15603BK-100 $266.12
4mm² / Blue FVK15603LB-100 $266.12
4mm² / Brown FVK15603NN-100 $266.12
4mm² / Green/Yellow FVK15603GNYW-100 $266.12
4mm² / Green FVK15603GN-100 $266.12
4mm² / Grey FVK15603SY-100 $266.12
4mm² / Orange FVK15603OR-100 $266.12
4mm² / Pink FVK15603PK-100 $266.12
4mm² / Red FVK15603RD-100 $266.12
4mm² / Violet FVK15603VL-100 $266.12
4mm² / White FVK15603WH-100 $266.12
6mm² / Black FVK18403BK-100 $400.53
6mm² / Blue FVK18403LB-100 $400.53
6mm² / Brown FVK18403NN-100 $400.53
6mm² / Green/Yellow FVK18403GNYW-100 $400.53
6mm² / Red FVK18403RD-100 $400.53
6mm² / White FVK18403WH-100 $400.53
