Product details

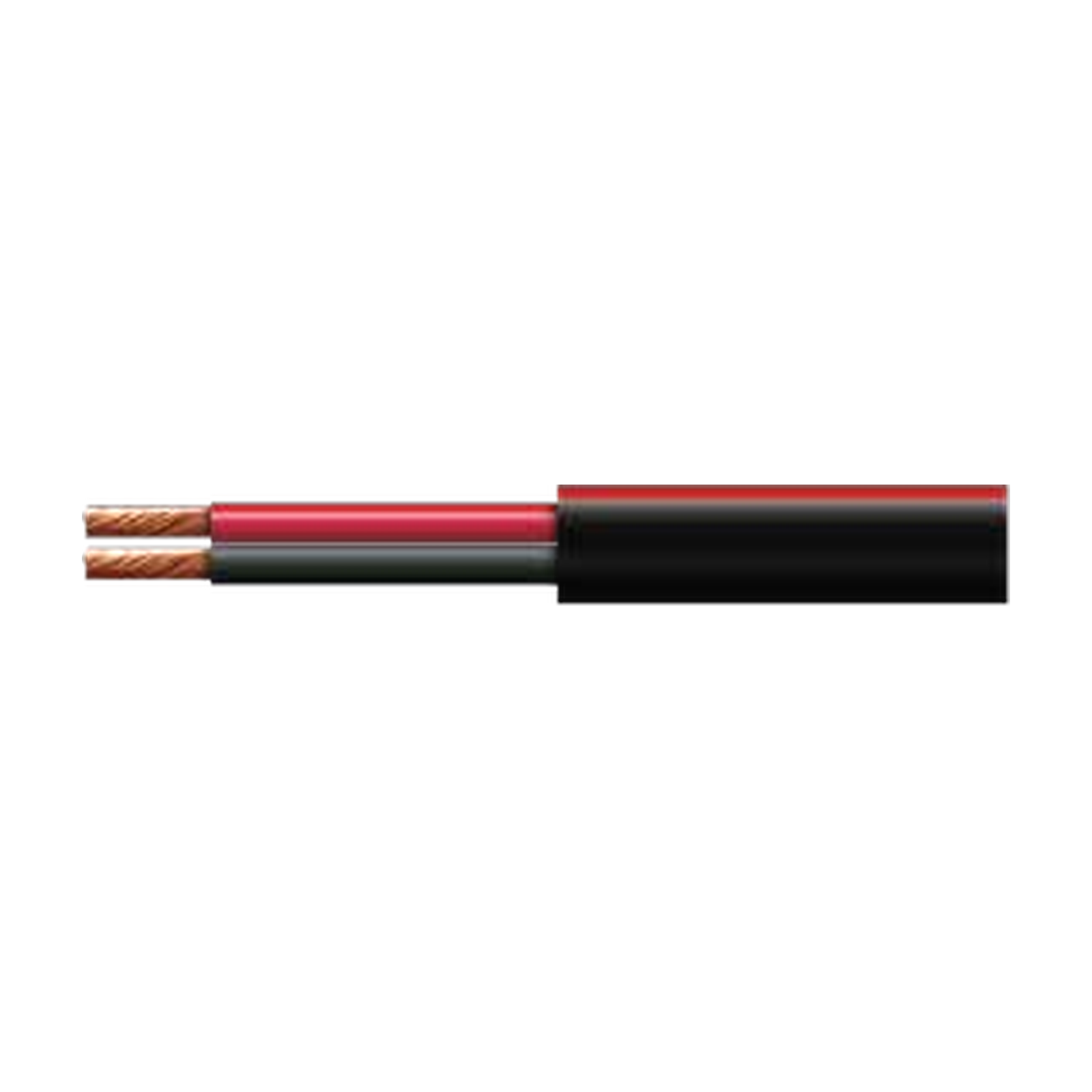

Australian-made Tycab twin-sheath automotive cable with red and black plain-copper conductors under a protective black outer sheath, supplied on a 100m roll.
- MPN / SKU: varies by selected option; each variant uses its manufacturer code as the SKU.
- Also known as: twin-core automotive cable, red black cable, duplex auto cable, twin-sheath wire.
Technical specifications
Colour and pack-length suffixes use the same cable construction as the Tycab base MPN/SKU shown below.
| Base MPN / SKU | Cores | Nominal area per core (mm²) | Amp rating at 30°C | Resistance at 20°C (Ω/km) | Nominal OD (mm) |
|---|---|---|---|---|---|
| AWC22603 | 2 | 1.84 | 22 A | 10.1 | 3.8 × 6.3 |
| AWC26503 | 2 | 5.0 | 38 A | 4.1 | 5.7 × 9.6 |
Manufacturer nominal data. Amp ratings are shown at 30°C where stated by Tycab; derating may be required for ambient temperature, cable grouping and installation conditions.
Technical datasheets
Quick order by variant
Add individual variants by manufacturer SKU.
| Variant | SKU | Price | Quantity | |
|---|---|---|---|---|
| 4mm industry size (1.84mm² per core) | AWC22603BK-100 |
$255.75 | ||
| 6mm industry size (4.59mm² per core) | AWC26503BK-100 |
$607.99 |
